Twin Screw Mixer

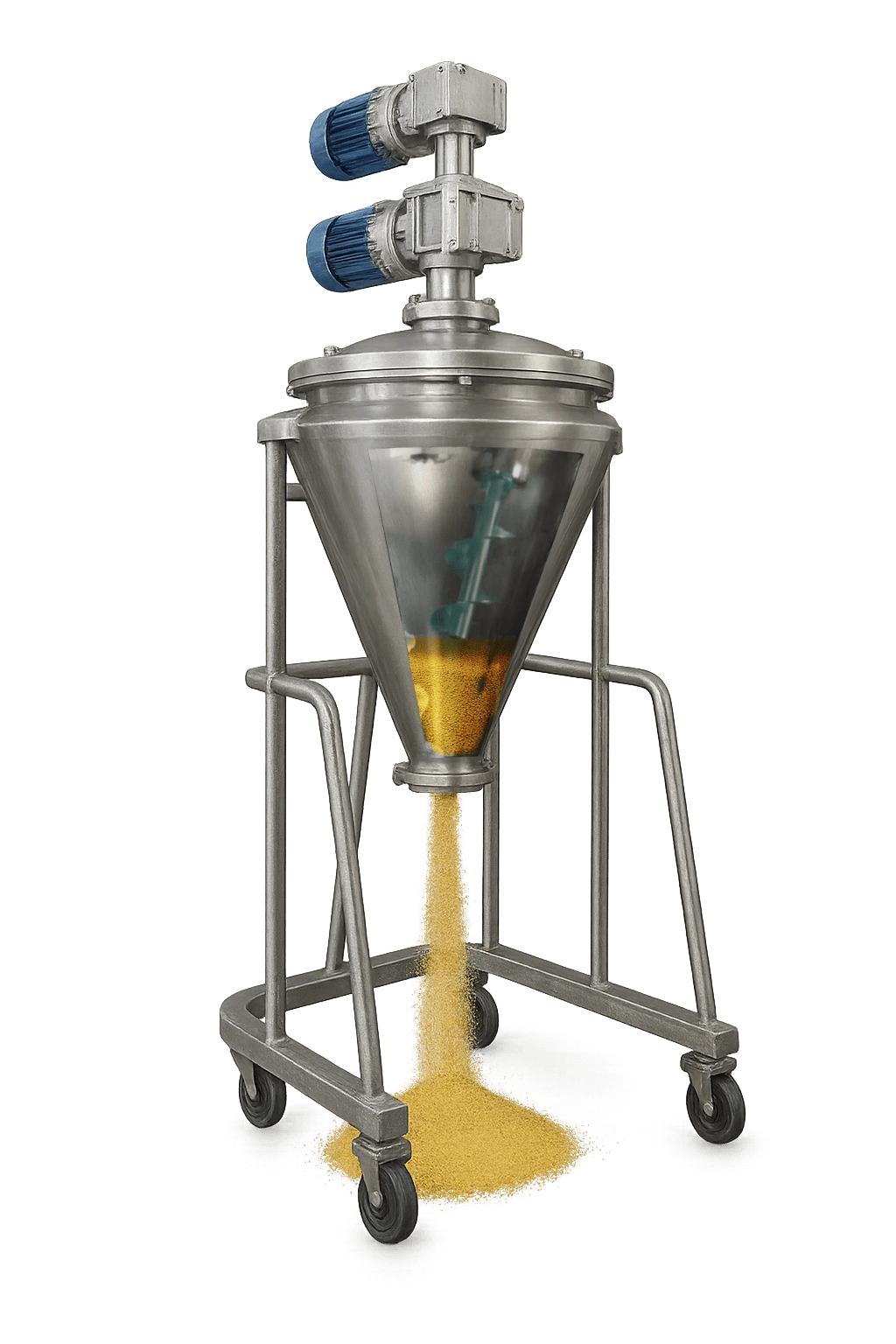

Twin screw blade with axial rotation & three-dimensional flow of mixer, along with radial mixing by the shape of a cone. It is ideal for intimate mixing of powder with different bulk densities. The screw blade provides upward movement to a product from the bottom & deflects into the centre of the body. Currently operating over 100 installations within the last 5 years.
Features
- Gentle mixing is used to achieve higher efficiency up to 96%.
- Intense mixing with low power consumption.
- Uniform mixing without product distortion.
- WIP enabled.
- Easy product discharge with minimal residue.
- Jacket for heating/cooling (Optional).
- Chopper for de-agglomeration (Optional).
- Comply with 21CFR part 11.
Robust & Uniform Mixing
for Diverse Materials

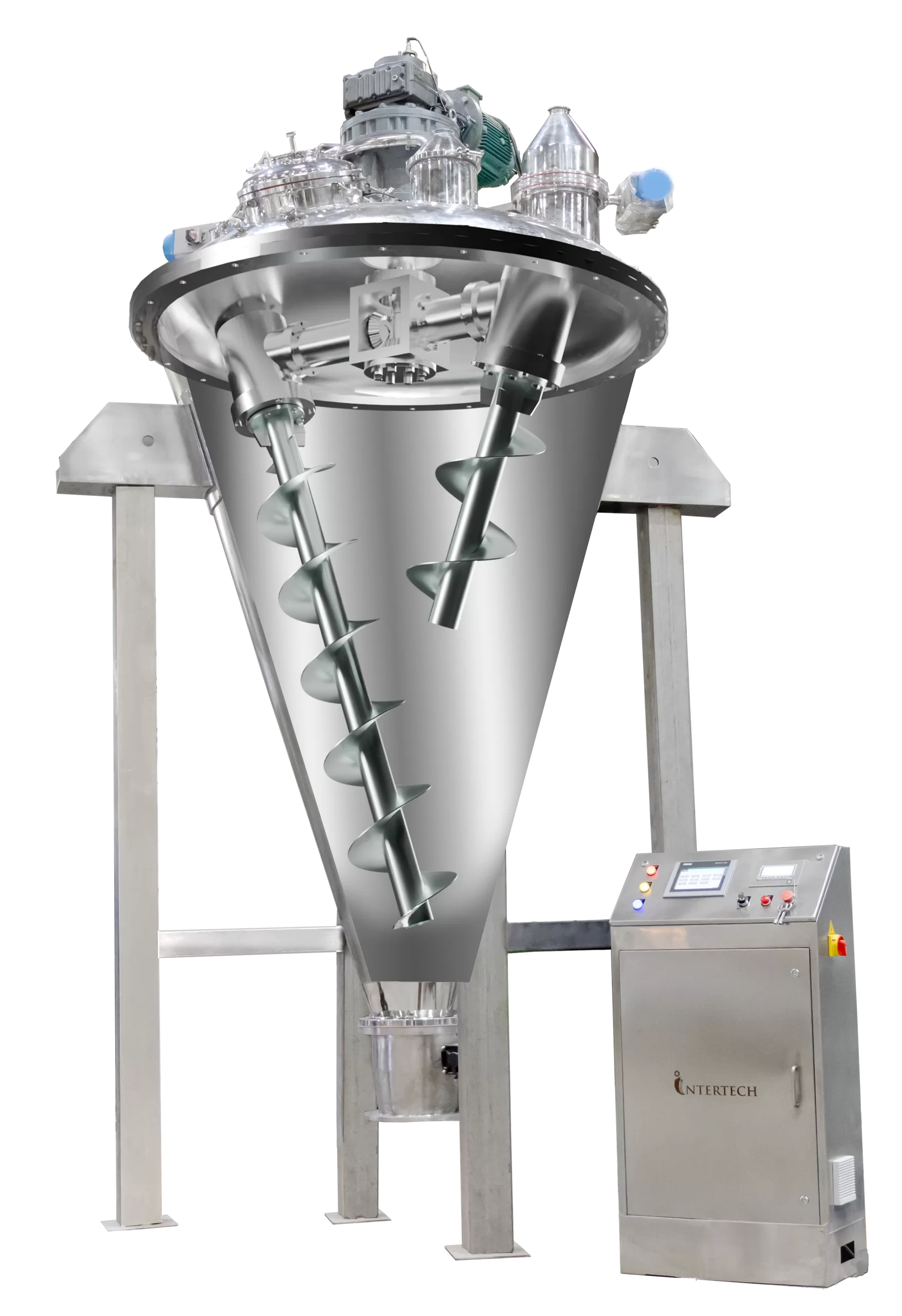

InterTech’s Twin Screw Mixer offers high-throughput mixing for large-scale production in nutraceutical, cosmetic, and industrial applications. We customize each unit to align with your production volume, material density, and process integration requirements.
InterTech’s standard models deliver:
- Dual counter-rotating screws for thorough, high-efficiency mixing.
- Low-shear design to maintain material integrity.
- Premium SS 316/SS 304 construction compliant with cGMP standards.
- Slide gate valve for precise, dust-free discharge.
- Wide loading hatch for easy material input and inspection.
- Optional high-shear impeller for enhanced dispersion
- Capacity: 100L to 6000L (customizable)
- Material Construction: SS 316/SS 304
- Motor Power: 2.5 kW to 20 kW
- Screw Speed: Adjustable up to 80 RPM
- Discharge System: Slide gate valve for controlled unloading
- Control System: PLC with digital touchscreen (optional)
- Applications: Pharmaceutical blends, food seasonings, polymer mixes
Applications
- Pharmaceutical/API
- Agrochemical
- Metallurgical
- Pigments & paints
- Food & beverages
- Plastic & Polymer
InterTech’s Twin Screw Mixer is engineered for reliable and uniform mixing of powders, granules, and viscous materials, serving the pharmaceutical, food, and chemical industries. We provide tailored solutions to meet your specific batch sizes, material properties, and blending consistency needs.

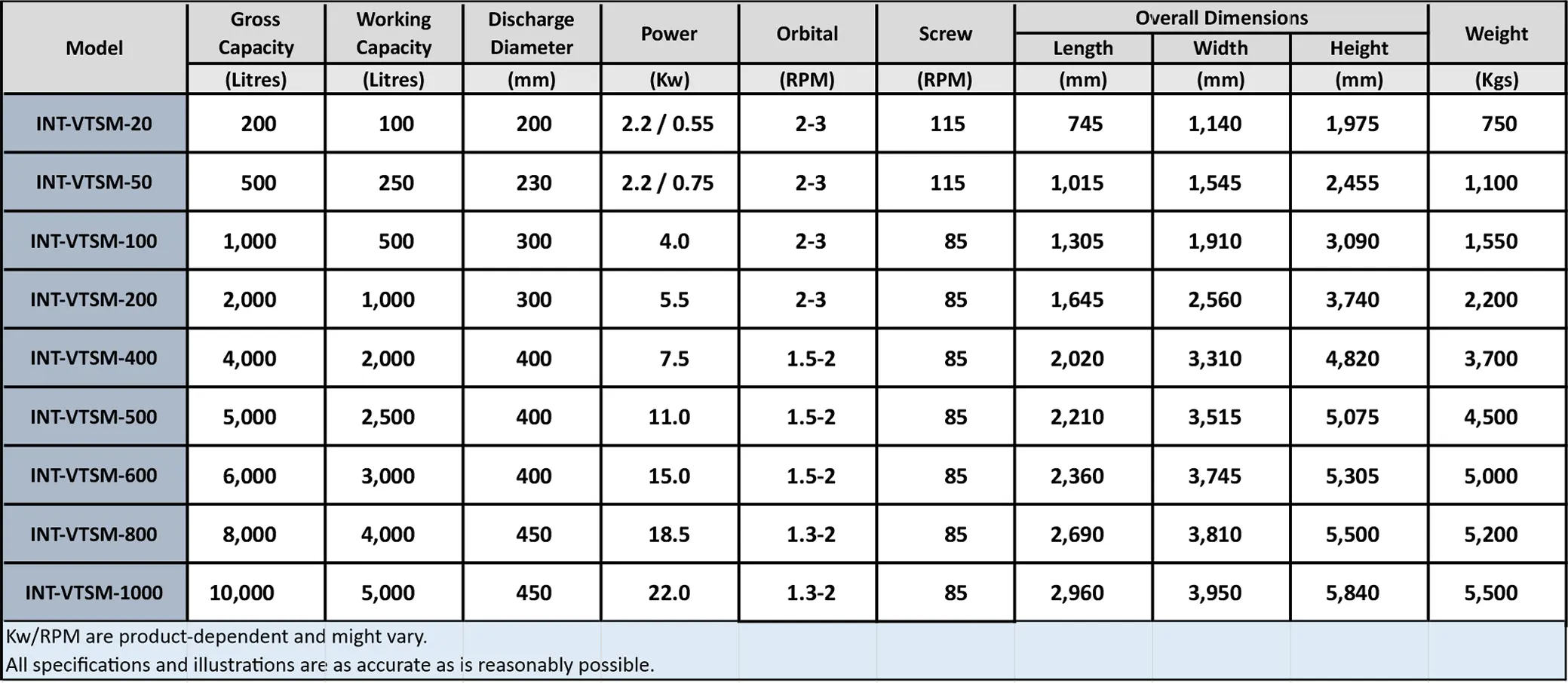

Table Specifications
