Vertical Ribbon Mixer

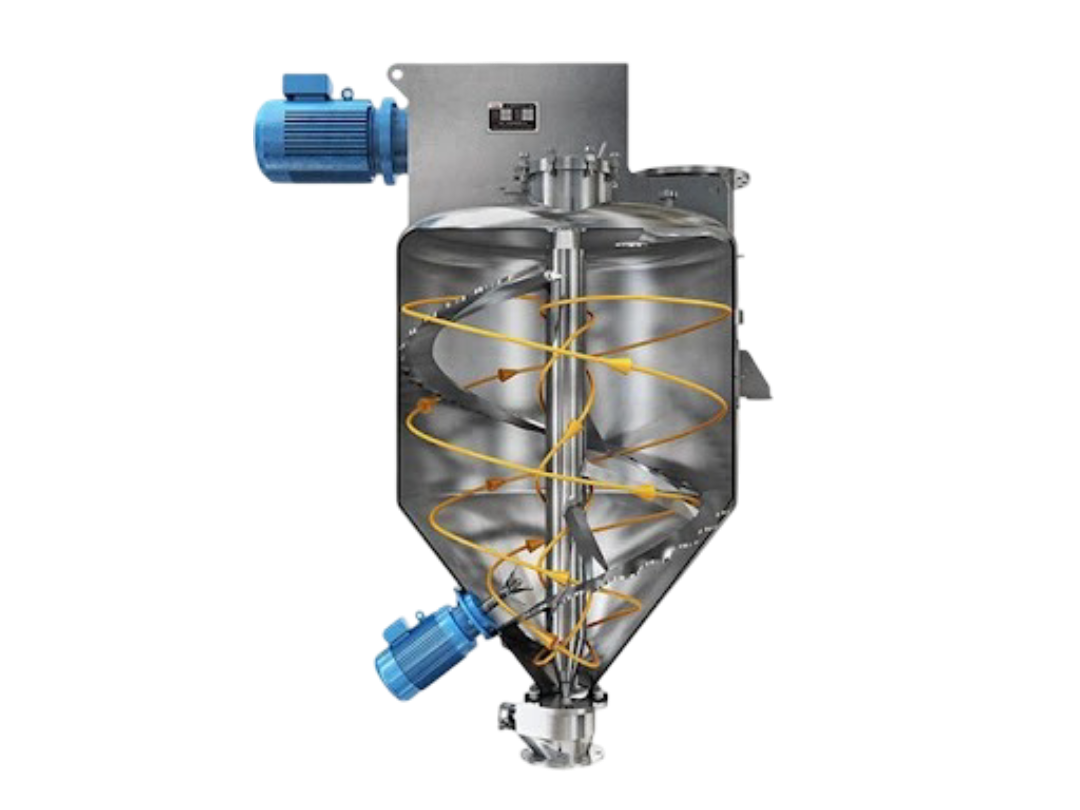

Vertical Ribbon Mixer features a single shaft with spiral mixing blades to create a three-dimensional flow of the product. The blade operates at a variable speed, generating a spiral upward movement from the bottom along the mixer wall periphery, leading to a gravitational downward flow from the top center of the mixer. This process ensures a uniform, homogeneous mixture, & complete discharge from the bottom, leaving zero residual inside
Features
- Construction in stainless steel AISI316L & 304.
- Efficient mixing.
- No pixel bearing at the bottom due to improved swing arm design.
- Applicable for all types of dry, moist, or suspended solids.
- Online sampling provision. Compact & robust design as well as a 21CFR part 11.
- Vacuum-compatible design.
- Heating provision through jacket (Optional).
- Provision of CIP (Clean in place) built in.
Efficient Vertical Mixing
for Powders & Granules

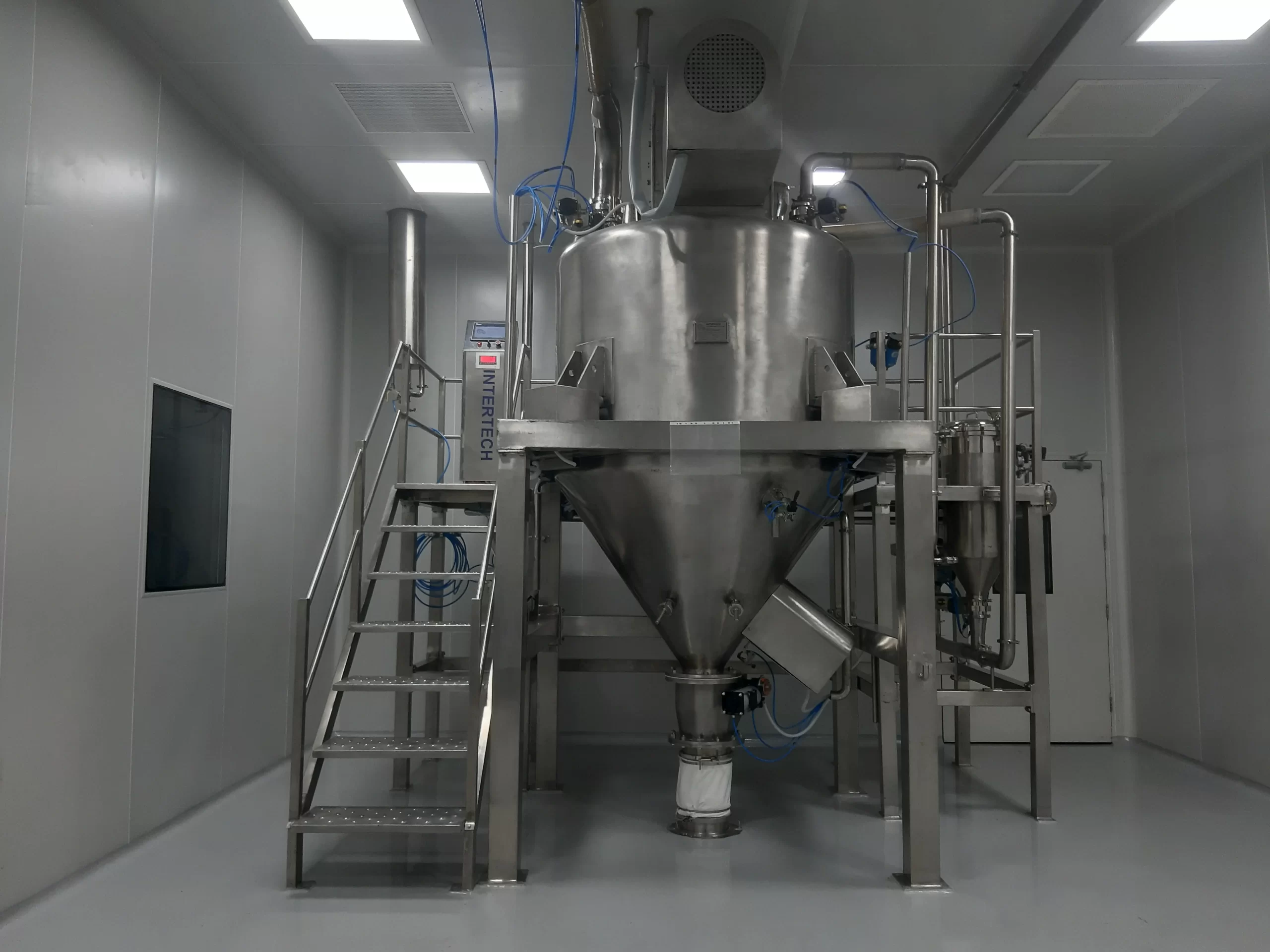

InterTech’s Vertical Ribbon Mixer provides robust and versatile mixing for large-scale production in nutraceutical, cosmetic, and industrial sectors. We tailor each unit to your throughput, material flow properties, and process integration needs.
InterTech’s standard models feature:
- Single or dual ribbon agitators for fast, homogenous mixing
- Conical vessel for optimal material circulation and discharge
- Durable SS 316/SS 304 build for hygiene and longevity
- Slide gate valve discharge for clean, efficient material release
- Dust-tight lid with integrated feed chute for safe operation
- Optional liquid spray system for wet mixing applications
- Capacity: 100L to 8000L (customizable)
- Material Construction: SS 316/SS 304
- Motor Power: 2.2 kW to 18 kW
- Ribbon Speed: Adjustable up to 70 RPM
- Discharge System: Slide gate valve for precise unloading
- Control System: PLC with touchscreen interface (optional)
- Applications: Pharmaceutical blends, food seasonings, chemical powders
Applications
- Pharmaceutical/API
- Agriculture & fertilizer
- Detergent product
- Animal nutrition
- Food & beverages
- Chemical
InterTech’s Vertical Ribbon Mixer is designed for high-efficiency mixing of powders, granules, and pastes, ideal for pharmaceutical, food, and chemical industries. We offer customized solutions to meet your specific batch sizes, material characteristics, and blending precision requirements.
